PRODUCT

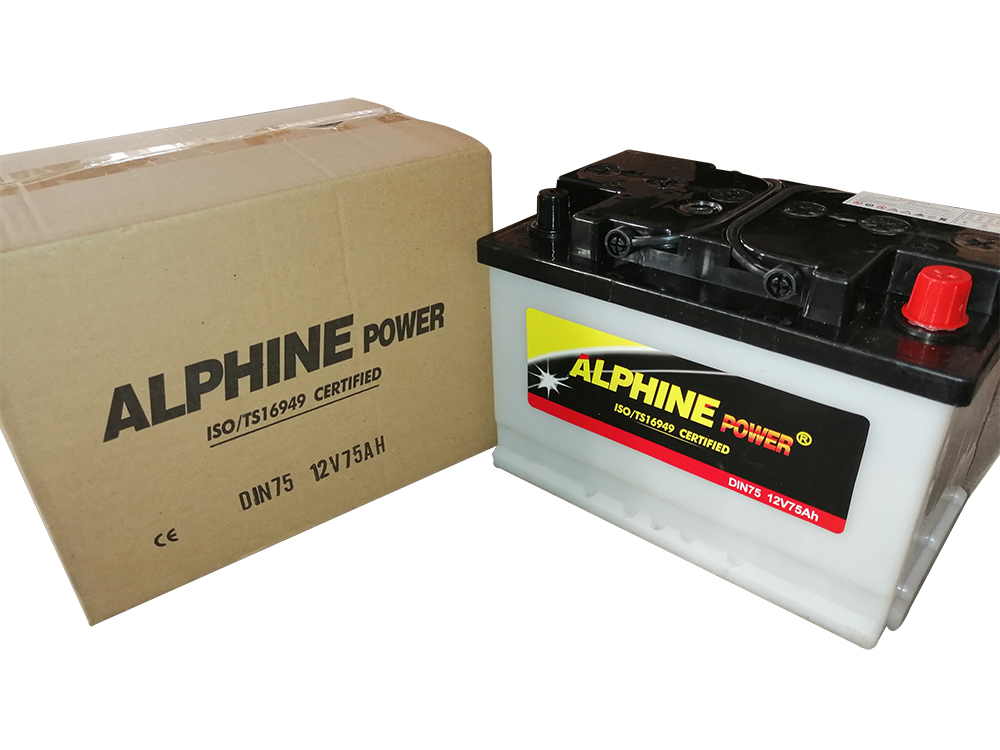

Dry Charged Auto Battery
Product Specifications
| Dry charged Automotive Starter Batteries ---- 12 Volt series | |||||||||||||
| No. | Volt | Capacity C20 (Ah) | Model | Battery Dimension (mm) | Reserved Capacity (Min.) | CCA (A) -18 C EN/DIN | Cell lay-out | Terminal | |||||
| JIS Standard | DIN Standard | ||||||||||||
| New Model | Old Model | L | W | H | T. H | ||||||||
| AD1 | 12 | 44 | ┄┄ | ┄┄ | 54459/34 | 210 | 175 | 190 | 190 | 71 | 220 | 0 | A |
| AD2 | 12 | 44 | ┄┄ | ┄┄ | 54464/49 | 210 | 175 | 190 | 190 | 71 | 220 | 1 | A |
| AD3 | 12 | 45 | ┄┄ | ┄┄ | 54519/33 | 242 | 175 | 175 | 175 | 71 | 220 | 0 | A |
| AD4 | 12 | 50 | ┄┄ | ┄┄ | 55066 | 210 | 175 | 190 | 190 | 80 | 220 | 0 | A |
| AD5 | 12 | 50 | ┄┄ | ┄┄ | 55055/56 | 245 | 175 | 175 | 175 | 80 | 220 | 0 | A |
| AD6 | 12 | 55 | ┄┄ | ┄┄ | 55530/59 | 245 | 175 | 190 | 190 | 90 | 255 | 0 | A |
| AD7 | 12 | 55 | ┄┄ | ┄┄ | 55548/65 | 245 | 175 | 190 | 190 | 90 | 255 | 1 | A |
| AD8 | 12 | 60 | ┄┄ | ┄┄ | 56077 | 245 | 175 | 175 | 175 | 100 | 250 | 0 | A |
| AD9 | 12 | 60 | ┄┄ | ┄┄ | 56073 | 245 | 175 | 190 | 190 | 100 | 250 | 0 | A |
| AD10 | 12 | 62 | ┄┄ | ┄┄ | 56219/16 | 245 | 175 | 190 | 190 | 100 | 280 | 0 | A |
| AD11 | 12 | 62 | ┄┄ | ┄┄ | 56221 | 245 | 175 | 190 | 190 | 100 | 280 | 1 | A |
| AD12 | 12 | 63 | ┄┄ | ┄┄ | 56318 | 278 | 175 | 175 | 175 | 106 | 300 | 0 | A |
| AD13 | 12 | 64 | ┄┄ | ┄┄ | 56420 | 278 | 175 | 175 | 175 | 110 | 310 | 0 | A |
| AD14 | 12 | 66 | ┄┄ | ┄┄ | 56618/38 | 278 | 175 | 190 | 190 | 113 | 300 | 0 | A |
| AD15 | 12 | 66 | ┄┄ | ┄┄ | 56619 | 278 | 175 | 190 | 190 | 113 | 300 | 0 | A |
| AD16 | 12 | 68 | ┄┄ | ┄┄ | 56828 | 278 | 175 | 175 | 175 | 113 | 300 | 0 | A |
| AD17 | 12 | 68 | ┄┄ | ┄┄ | 56818/21 | 278 | 175 | 175 | 175 | 113 | 300 | 0 | A |
| AD18 | 12 | 72 | ┄┄ | ┄┄ | 57219 | 278 | 175 | 190 | 190 | 130 | 310 | 1 | A |
| AD19 | 12 | 72 | ┄┄ | ┄┄ | 57220 | 278 | 175 | 190 | 190 | 130 | 310 | 0 | A |
| AD20 | 12 | 74 | ┄┄ | ┄┄ | 57412 | 278 | 175 | 190 | 190 | 130 | 380 | 0 | A |
| AD21 | 12 | 74 | ┄┄ | ┄┄ | 57413 | 278 | 175 | 190 | 190 | 130 | 380 | 1 | A |
| AD22 | 12 | 75 | ┄┄ | ┄┄ | 57539 | 278 | 175 | 175 | 175 | 130 | 330 | 0 | A |
| AD23 | 12 | 75 | ┄┄ | ┄┄ | 57531/40 | 278 | 175 | 190 | 190 | 130 | 330 | 0 | A |
| AD24 | 12 | 80 | ┄┄ | ┄┄ | 58034 | 278 | 175 | 190 | 190 | 140 | 380 | 0 | A |
| AD25 | 12 | 88 | ┄┄ | ┄┄ | 58815/27 | 352 | 176 | 190 | 190 | 155 | 395 | 0 | A |
| AD26 | 12 | 88 | ┄┄ | ┄┄ | 58815/27 | 352 | 176 | 190 | 190 | 155 | 395 | 0 | A |
| AD27 | 12 | 100 | ┄┄ | ┄┄ | 60038 | 352 | 175 | 190 | 190 | 180 | 440 | 0 | A |
