PRODUCT
Maintenancen Free Auto Battery
Product Specifications
| Sealed Maintenance Free Automotive Starter Batteries ---- 12 Volt series | |||||||||||||

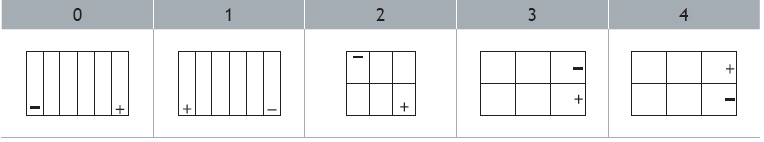

| No. | Volt | Capacity C20 (Ah) | Model | Battery Dimension (mm) | Reserved Capacity (Min.) | CCA (A) -18 C EN/DIN | Cell lay-out | Terminal | |||||
| JIS Standard | DIN Standard | ||||||||||||
| New Model | Old Model | L | W | H | T. H | ||||||||
| AJMF1 | 12 | 32 | 36B20R | NS40MF | 196 | 130 | 190 | 190 | 52 | 190 | 1 | B | |
| AJMF2 | 12 | 35 | 38B20R | NS40ZMF | 53522MF | 198 | 128 | 201 | 220 | 52 | 274/150 | 1 | B |
| AJMF3 | 12 | 35 | 38B20L | NS40ZLMF | 53520MF | 198 | 128 | 201 | 220 | 52 | 274/150 | 0 | B |
| AJMF4 | 12 | 40 | 32C24R | N40MF | ┄┄ | 240 | 132 | 200 | 220 | 62 | 238 | 1 | A |
| AJMF5 | 12 | 40 | 32C24L | N40LMF | ┄┄ | 240 | 132 | 200 | 220 | 62 | 238 | 0 | A |
| AJMF6 | 12 | 45 | 46B24R | NS60MF | 54551MF | 240 | 132 | 200 | 220 | 71 | 325/220 | 1 | B |
| AJMF7 | 12 | 45 | 46B24R(S) | NS60 (S)MF | 54524MF | 240 | 132 | 200 | 220 | 71 | 325/220 | 1 | A |
| AJMF8 | 12 | 45 | 46B24L | NS60LMF | 54584MF | 240 | 132 | 200 | 220 | 71 | 325/220 | 0 | B |
| AJMF9 | 12 | 45 | 46B24L(S) | NS60L (S)MF | 54523MF | 240 | 132 | 200 | 220 | 71 | 325/220 | 0 | A |
| AJMF10 | 12 | 50 | 48D26R | N50MF | ┄┄ | 260 | 170 | 200 | 220 | 80 | 330 | 1 | A |
| AJMF11 | 12 | 50 | 48D26L | N50LMF | ┄┄ | 260 | 170 | 200 | 220 | 80 | 330 | 0 | A |
| AJMF12 | 12 | 60 | 55D26R | N50ZMF | ┄┄ | 260 | 170 | 200 | 220 | 100 | 390 | 1 | A |
| AJMF13 | 12 | 60 | 55D26L | N50ZLMF | ┄┄ | 260 | 170 | 200 | 220 | 100 | 390 | 0 | A |
| AJMF14 | 12 | 60 | ┄┄ | ┄┄ | 56049MF | 258 | 173 | 200 | 220 | 100 | 250 | 1 | A |
| AJMF15 | 12 | 60 | ┄┄ | ┄┄ | 56048MF | 258 | 173 | 200 | 220 | 100 | 250 | 0 | A |
| AJMF16 | 12 | 60 | 55D23R | ┄┄ | 56069MF | 230 | 171 | 204 | 225 | 100 | 390/250 | 1 | A |
| AJMF17 | 12 | 60 | 55D23L | ┄┄ | 56068MF | 230 | 171 | 204 | 225 | 100 | 390/250 | 0 | A |
| AJMF18 | 12 | 65 | 65D26R | NS70MF | ┄┄ | 260 | 170 | 200 | 220 | 110 | 413 | 1 | A |
| AJMF19 | 12 | 65 | 65D26L | NS70LMF | ┄┄ | 260 | 170 | 200 | 220 | 110 | 413 | 0 | A |
| AJMF20 | 12 | 70 | 80D26R | NX110-5MF | 57029MF | 260 | 170 | 200 | 220 | 113 | 430/310 | 1 | A |
| AJMF21 | 12 | 70 | 80D26L | NX110-5LMF | 57024MF | 260 | 170 | 200 | 220 | 113 | 430/310 | 0 | A |
| AJMF22 | 12 | 70 | 65D31R | N70MF | ┄┄ | 305 | 170 | 202 | 225 | 113 | 430 | 1 | A |
| AJMF23 | 12 | 70 | 65D31L | N70LMF | ┄┄ | 305 | 170 | 202 | 225 | 113 | 430 | 0 | A |
| AJMF24 | 12 | 75 | 75D31R | N70ZMF | 57513MF | 305 | 170 | 202 | 225 | 130 | 450/330 | 1 | A |
| AJMF25 | 12 | 75 | 75D31L | N70ZLMF | 57512MF | 305 | 170 | 202 | 225 | 130 | 450/330 | 0 | A |
| AJMF26 | 12 | 80 | 95D31R | NX120-7MF | ┄┄ | 305 | 170 | 202 | 225 | 140 | 480 | 1 | A |
| AJMF27 | 12 | 80 | 95D31L | NX120-7LMF | ┄┄ | 305 | 170 | 202 | 225 | 140 | 480 | 0 | A |
| AJMF28 | 12 | 85 | ┄┄ | N85 | 58034MF | 305 | 170 | 202 | 225 | 150 | 380 | 0 | A |
| AJMF29 | 12 | 85 | ┄┄ | N85 | 58521/13MF | 305 | 170 | 202 | 225 | 150 | 380 | 1 | A |
| AJMF30 | 12 | 100 | ┄┄ | N100MF | 410 | 172 | 205 | 225 | 180 | 440 | 1 | A | |
| AJMF31 | 12 | 120 | 115F51 | N120MF | 62034MF | 505 | 180 | 210 | 235 | 230 | 638 | 3 | A |
| AJMF32 | 12 | 135 | ┄┄ | N135MF | 63511MF | 505 | 180 | 210 | 235 | 255 | 470 | 3 | A |
| AJMF33 | 12 | 140 | 145F51 | NS150MF | 64020MF | 505 | 180 | 210 | 235 | 270 | 699/520 | 3 | A |
| AJMF34 | 12 | 143 | ┄┄ | ┄┄ | 64317MF | 507 | 221 | 212 | 235 | 294 | 540 | 3 | A |
| AJMF35 | 12 | 150 | 145G51 | N150MF | ┄┄ | 507 | 221 | 212 | 235 | 294 | 754 | 3 | A |
| AJMF36 | 12 | 165 | 165G51 | N165MF | ┄┄ | 507 | 221 | 212 | 235 | 330 | 820 | 3 | A |
| AJMF37 | 12 | 170 | ┄┄ | ┄┄ | 67018MF | 507 | 221 | 212 | 235 | 350 | 600 | 3 | A |
| AJMF38 | 12 | 180 | 195G51 | N180MF | 68021MF | 507 | 265 | 212 | 235 | 390 | 885/570 | 3 | A |
| AJMF39 | 12 | 180 | ┄┄ | ┄┄ | 68032MF | 507 | 221 | 212 | 235 | 350 | 600 | 3 | A |
| AJMF40 | 12 | 200 | 190H52 | N200MF | 70027MF | 514 | 265 | 212 | 235 | 430 | 924/630 | 3 | A |
| AJMF41 | 12 | 210 | 190H52 | N210MF | 514 | 265 | 212 | 235 | 430 | 924/630 | 3 | A | |
| AJMF42 | 12 | 220 | ┄┄ | N220MF | ┄┄ | 514 | 265 | 212 | 235 | 450 | 1000 | 3 | A |
